Temperature Screening CCTV

Temperature Screening CCTV

Temperature Screening Systems

Handheld Temperature Screening Device

ABOUT US

GA Technical Ltd is a professional CCTV and Security systems company. We supply and install  temperature screening CCTV systems and hand held devices. We offer our temperature screening CCTV systems for fever detection, fire detection and personnel detection CCTV. We are based in Eastbourne, East Sussex and we provide our services across the South East of England.

Quick Deployment Fever Screening Solutions

WHAT WE OFFER

Our Temperature Screening Solution, with multiple product types and wide range of applications, is designed for the detection of skin-surface temperatures so as to achieve rapid and safe preliminary screening in public areas with high efficiency in a multitude of scenarios.



An approach that incorporates competent technologies, instead of manpower alone, can be a much better choice in many ways.  An effective and reliable approach to fever screening.

Fever Screening CCTV Advantages

Fever screening CCTV saves time taken to get an accurate assessment of any visitors entering a building.  A very quick detection method reducing queue waiting times. Fever screening CCTV is a fast and effective solution that will free up staff and offer accuracy when screening visitors.

  • View real time fever screening on a monitor

  • Receive alarms or notifications

  • Quick deployment fever screening solutions

  • Temporary and fixed fever screening systems

  • Monitor multiple entry exit points



Temperature Screening

With advanced detectors and algorithms,  Temperature Screening Tomographic Cameras are designed to detect elevated skin-surface temperatures, and can thus be used for rapid and preliminary temperature screening in office buildings, factories, stations, airports and other public places, with accuracy up to ±0.3°C.



  • One second to detect skin-surface temperature of a person

  • Multi-person detection simultaneously

  • Non-contact measurement to avoid physical contact

  • Immediately alarming to notify operators

  • AI detection to reduce false alarms from other heat sources

Temperature Screening for Care Homes

Temperature Screening for Care Homes

Care homes are a place that would certainly benefit from from the use of temperature screening cameras.

We have tested temperature screening systems to see which one is most suitable to be installed into care homes.

We looked for a system that was effective, reliable and requires no user interaction apart from walking past a thermal CCTV camera and having their temperature read.

Our systems are designed to be deployed at entry doors or receptions, a temperature screening camera will detect a visitor with a high temperature, sending an alert to the reception desk or on a selected smart device. High body temperature alerts can also be displayed in real-time on a monitor screen.

We also offer hand-held body temperature screening devices that can be used by staff in care homes. Hand-held screening devices can be placed in a pocket are are great for monitoring body temperatures in multiple locations.

Fever measurement with thermography?

An major indicator for an infection is increased body temperature, compared to other people in the immediate area, This is generally known as a fever.



Thermography is the tested method for scanning not just individuals, but also large flows of people. To do this, the temperature at the inner corner of the eye is measured, and an alarm triggered if the temperature is above the set threshold. This allows persons with increased body temperature to be identified quickly and reliably, and to be isolated.

Temperature Screening CCTV Kit
People Being Screened for Covid-19 Virus

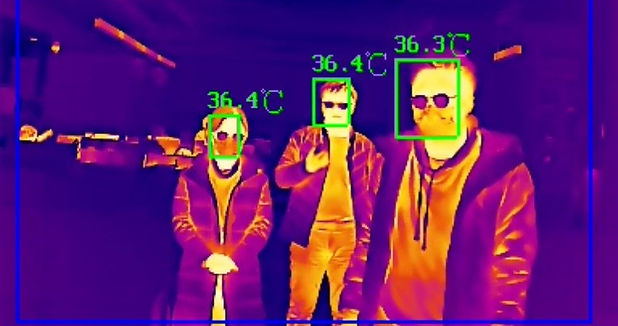

Group Temperature Screening

Group Screening with High Efficiency

Supports simultaneous temperature screening of multiple people, greatly enhancing efficiency of the workforce.

 Temperature monitoring CCTV cameras can be mounted on ceilings, walls or a tripod.

Monitor anyone entering a building from a GUI screen and receive high temperature notifications.

Hand Held Temperature Screening

Anytime, Anywhere, Just One Click

Supports preliminary on-spot temperature screening without disturbing a person.

Quick and easy to deploy cost effective temperature screening solution.

With a Wi-Fi module, the handheld camera can connect to a PC or a smartphone. It also features a built-in speaker for audio alarm.

  • Temperature measurement range: 30°C to 45°C

  • Temperature measurement accuracy: ±0.5°C.

Handheld Fever Scanner
Temperature Screening Access Control

Access Control Temperature Screening

Touch-Free, Access is Easier but Safer

Long-term temperature screening with access control for building related projects.

An access control system with temperature screening which will deny access to to any allocated users with a temperature above the  pre programmed threshold.

Detailed Device Features
Access Control System for Temperature Screening

Access Control Body Temperature Measuring

Features

  • Supports Vanadium Oxide uncooled sensor to measure target's temperature

  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C

  • Recognition distance: 0.5 to 1.5 m

  • Fast temperature measurement mode: Detects face and takes temperature without identity authentication

  • Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc

  • Face mask wearing alert: If the recognising face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid

  • Forced mask wearing alert: If the recognising face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed

  • Displays temperature measurement results on the authentication page

  • Triggers voice prompt when detecting abnormal temperature

  • Configurable door status (open/close) when detecting abnormal temperature

  • Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software

  • Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99%

  • 50,000 face capacity, 50,000 card capacity, and 100,000 event capacity

  • Suggested height for face recognition: between 1.4 m and 1.9 m

  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out

  • Connects to external access controller or Wiegand card reader via Wiegand protocol

  • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is is vandalised

Hikvision Handhelt Vurus Scanner

Handheld Thermal Scanner 6AVF

The handheld thermal camera, specially designed for body temperature measurement. It’s equipped with a 160×120 resolution thermal detector. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine.

Features

  • 160 × 120 resolution (thermal), and 8 MP resolution (optical)

  • Thermographic accuracy up to ±0.5 °C

  • Display fusion of thermal view and optical view.  640 × 480 resolution 3.5” LCD touch display

  • Support live view on PC, mobile device or external monitor

  • Support audio intercom

  • Support colour highlight alarm and audio alarm

Handheld Thermal Scanner

Handheld Thermal Scanner 3AUF

The handheld thermal camera, specially designed for body temperature measurement. It’s equipped with a 160×120 resolution thermal detector. It helps to quickly detect fever Key Features

  •  160 × 120 resolution

  •  Thermographic accuracy up to ±0.5 °C

  •  320 × 240 resolution 2.4’’ LCD display

  •  Built-in rechargeable Li-ion battery

  •  Up to 8 hours continuous running



Functions

Thermography Device detects the real-time temperature, and display it on the screen. Storage Device is equipped with replaceable memory card to store recorded captured snapshots, and important data. Palette Device supports 4 palettes

Fever Screening CCTV Camera

Body Temperature Measuring Camera



The Bullet Body Temperature Measurement Camera is able to measure object's temperature at a high accuracy in real time. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine. Key Feature

Features

● 160 × 120 resolution in thermal channel, high sensitivity sensor.

● Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C

● Reliable temperature exception alarm function

● 3D DNR, image detail enhancement

● Audio alarm

Walkthrough Temperature Screening System

Walk through Temperature Measuring Station

Tomographic Bullet Body Temperature Measurement Camera is able to measure object's temperature at a high accuracy in real time. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine. Key Feature

Features

● 160 × 120 resolution in thermal channel, high sensitivity sensor

● Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °

● Reliable temperature exception alarm function

● 3D DNR, image detail enhancement

● Audio alarm

Body Temperature

Normal body temperature is different for everyone and changes during the day.

A high temperature is usually considered to be 38C or above. This is sometimes called a fever.

Many things can cause a high temperature, but it's usually caused by your body fighting an infection.

Hikvision Thermal CCTV Camera
